At Valley Plumbing, we pride ourselves on delivering high-quality, reliable plumbing services across Northern Utah, specializing in complex sewer line repairs. Recently, we completed a challenging sewer line repair project for a customer in Murray, Utah. This comprehensive job involved both a spot repair and the installation of an epoxy-coated sewer liner to fix a deteriorating clay sewer line. The project not only restored the functionality of the property's sewer system but also ensured long-term durability and peace of mind for the property owner. In this case study, we’ll detail the work completed, highlight the effectiveness of trenchless sewer repair technology, and share the customer's positive feedback on the work we performed.

The Problem: Deteriorating Sewer Line

Our Customer, the landlord of the property, had been experiencing issues with the sewer line on the west side of the property. The existing clay sewer pipe, located approximately 5.5 feet underground, had developed a "belly" that caused significant drainage issues. A "belly" in plumbing is a sag or dip in the pipe that leads to standing water and blockages, preventing the proper flow of waste to the city’s main sewer line. In addition, the pipe was old and susceptible to further damage or collapse.

The sewer line ran under a sidewalk slab and a fence, making traditional sewer replacement difficult and disruptive. To address the issue effectively, the team at Valley Plumbing recommended a trenchless sewer repair method using an epoxy-coated sewer liner, as well as the replacement of the damaged section of clay pipe with a new SDR35 pipe.

The Solution: Comprehensive Sewer Line Repair and Epoxy Liner Installation

The project involved both spot repair and trenchless sewer repair methods to minimize disruption while ensuring a lasting solution. Below is the breakdown of how Valley Plumbing approached and executed this complex job:

Step 1: Excavation and Pipe Removal

To begin, the Valley Plumbing team carefully excavated the area around the damaged sewer line. This required removing two sections of concrete sidewalk slabs and digging down to expose the damaged section of the clay sewer pipe. The team worked meticulously to expose 14 feet of the old clay pipe, ensuring that the excavation was done cleanly to avoid unnecessary damage to the surrounding landscape.

Step 2: Pipe Replacement

Once the damaged section of the pipe was exposed, the team removed the 14 feet of clay pipe where the belly had formed. The old pipe was snap-cut, and debris was cleared from the work area. Valley Plumbing then replaced the deteriorated section with high-quality SDR35 pipe, known for its durability and resistance to corrosion. The new pipe was bedded in ¾ gravel to provide additional stability and ensure proper drainage.

Step 3: Sewer Liner Installation

Next, the Valley Plumbing team used trenchless technology to shoot a 22-foot epoxy-coated sewer liner from the repair site back toward the house, followed by another 20-foot liner toward the city’s main sewer line. The epoxy coating inside the liner creates a smooth, seamless surface that effectively seals the pipe, preventing future leaks, root intrusion, or blockages. This trenchless method allowed us to restore the sewer line’s functionality without needing to dig up the entire length of the sewer pipe, significantly reducing the disruption to the customer's property.

Step 4: Installing Dual Sweep Cleanouts

To ensure future maintenance would be easy, we installed two new dual sweep cleanouts. These cleanouts allow for easy access to the sewer line in both directions—one cleanout facing toward the house and one facing toward the city main. This ensures that any potential clogs or blockages can be addressed quickly and efficiently.

Step 5: Backfill, Compaction, and Landscape Restoration

Once the sewer line repairs were completed and inspected by the city, our team backfilled the excavation site with care, compacted the soil to prevent future settling, and restored the landscaping to the best of our ability. While final landscaping was left to the customer, we ensured that the property was returned to a clean and tidy state.

The Results: A Seamless Sewer Line Repair with Long-Term Benefits

Our Customer was highly satisfied with the work performed by Valley Plumbing. He recognized that sewer line repair is a significant and potentially disruptive job, but trusted our team to deliver on our promises—and we did. The combination of spot repair and trenchless sewer lining resulted in a completely restored sewer line, providing long-lasting performance and reliability.

Valley Plumbing’s solution not only resolved the immediate issue of the damaged sewer line but also ensured that the customer's property was protected from future sewer-related problems. The use of an epoxy-coated sewer liner offers long-term benefits, including:

• Durability: With a 50-year manufacturer warranty on the sewer liner and a 10-year service warranty, our customer can rest assured that his sewer line will remain functional for decades to come.
• Cost Savings: Trenchless repair methods reduced the amount of excavation required, saving time and money on labor, materials, and landscaping restoration.
• Minimal Disruption: By using trenchless methods, Valley Plumbing minimized the impact on the surrounding landscape, keeping the property’s aesthetic intact while delivering top-notch sewer line repairs.

Customer Testimonial

Here’s what our customer  had to say about his experience with Valley Plumbing:

"Valley/Towers Plumbing put in a main sewer drain for me. This is a big, expensive job. No project goes perfectly, so you have to trust the company you work with. I trusted these guys, and they worked hard to fulfill every promise verbally and in writing. I am completely happy with the work they did and would use them again."

"This company is old school, and they have been around for decades. They aren’t slick, but they are solid. A shout out to Jules for all his hard work and dedication to the job!"

Why Choose Valley Plumbing?

Valley Plumbing is proud to serve the residents of Utah with reliable, professional plumbing services. With decades of experience and a commitment to using the latest technology—such as trenchless sewer repair—our team is equipped to handle even the most challenging sewer line repairs. We understand the importance of trust, transparency, and quality workmanship, which is why homeowners like our customers turn to Valley Plumbing for their most critical plumbing needs.

If you're facing sewer line issues or need expert plumbing services in Utah, contact Valley Plumbing today. We're here to provide efficient, cost-effective solutions that will keep your home’s plumbing system running smoothly for years to come.

At Valley Plumbing, we pride ourselves on delivering high-quality, reliable, and efficient plumbing services to homeowners across Utah. In this recent project, we successfully completed a challenging main water line replacement for a client in Lehi, Utah. This project involved replacing the main water line running from the water meter to the property and required careful excavation, advanced trenchless technology, and precision installation of key components such as the Pressure Reducing Valve (PRV) and shut-off valves.

This case study demonstrates how Valley Plumbing’s expertise, dedication, and use of modern plumbing technology ensured a smooth and successful project, with minimal disruption to the homeowner’s property. Our goal was to restore full water flow to the home and provide a reliable, long-term solution.

The Problem: Damaged Main Water Line

The client had been experiencing issues with their water line, including reduced water pressure and occasional leaks. After inspecting the property, the Valley Plumbing team determined that the main water line running from the meter to the house was deteriorating due to age and environmental factors. Over time, underground water lines can suffer from corrosion, root intrusion, or ground shifting, all of which compromise efficiency and lead to leaks or inconsistent water flow.

The existing water line was buried approximately 3-4 feet deep, running a length of 55 feet from the water meter to the corner of the property. Given the depth and obstacles such as a driveway and nearby utilities, a traditional trench-digging approach would have been labor-intensive and highly disruptive to the landscape. The client needed an efficient solution that would minimize the impact on the property while addressing the water line problem.

Step 2: Pneumatic Missile and Water Line Installation

Using a pneumatic missile, Valley Plumbing shot a new ¾-inch poly water line through the existing path of the old water line. This technology allowed the team to replace the line without digging a full trench along the entire property, which would have been time-consuming and disruptive.

The initial attempts to shoot the missile encountered challenges due to wet ground conditions, causing the missile to veer off course. However, after multiple attempts, the team successfully navigated the missile through the correct path, pulling the new poly water line through from the driveway hole to the foundation of the home. The second missile shot from the meter hole to the driveway was successful on the first attempt.

Once the new poly water line was in place, the team connected the line to the water meter and made the necessary internal connections to the house.

Step 3: Installation of PRV and Shut-Off Valves

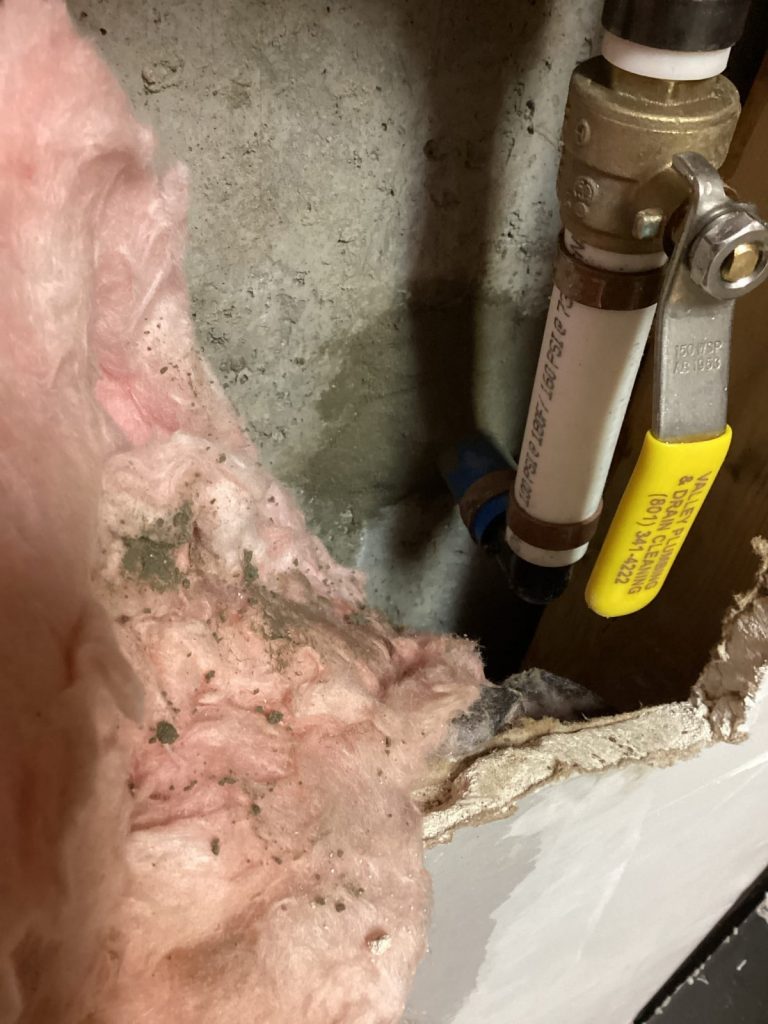

With the new water line installed, Valley Plumbing proceeded to install a new Pressure-Reducing Valve (PRV), a new ball valve outside, and a new stop-and-waste valve to modernize the system. The PRV is an essential component that regulates the water pressure entering the home, preventing damage to plumbing fixtures. The new shut-off valves provide the client with better control over water flow and make future maintenance easier.

Step 4: Testing and Backfilling

After making all the necessary connections, the team conducted a comprehensive water pressure test to ensure there were no leaks in the new water line. The water pressure was set at 65 psi, as requested by the client. Once testing confirmed successful installation, the team backfilled the excavation sites, compacted the soil to prevent future settling, and restored the landscaping to the best of their ability.

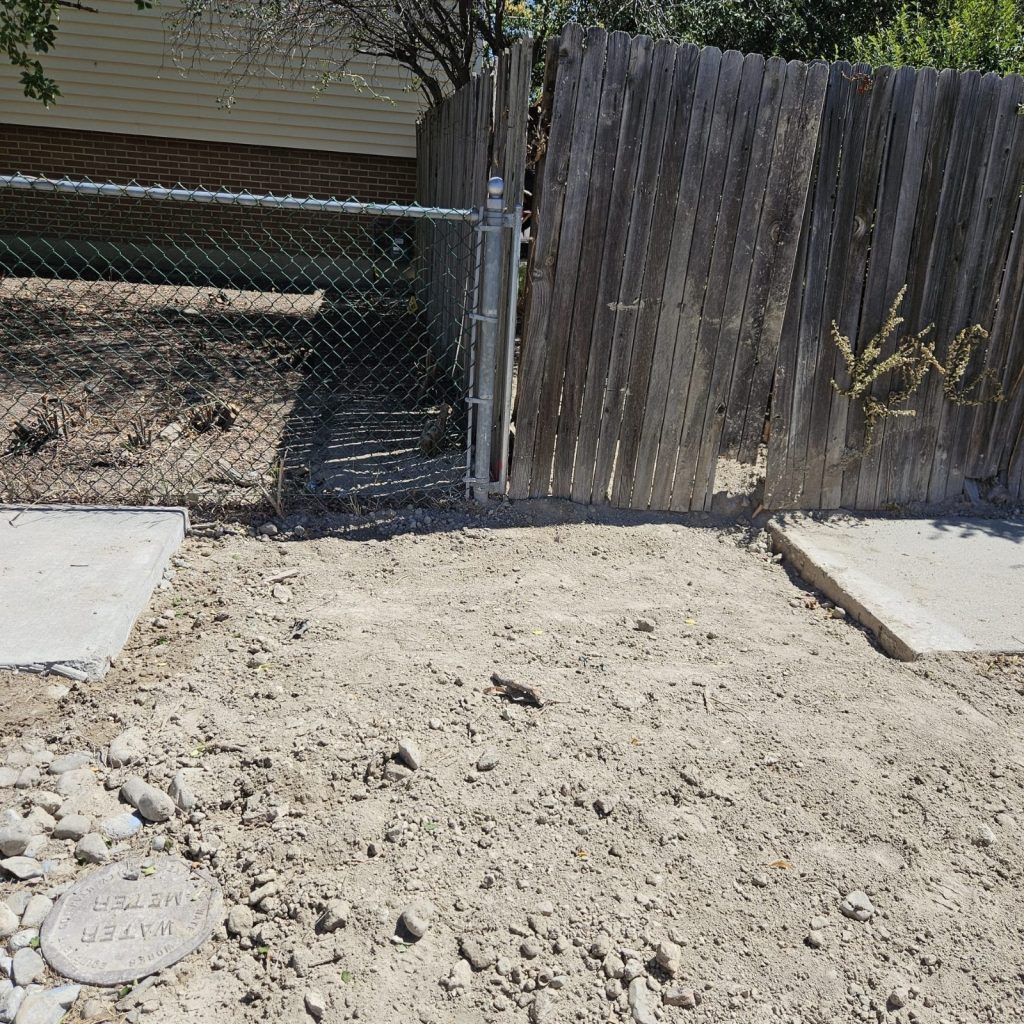

Although final landscaping was left to the client, Valley Plumbing ensured that the property was left clean and presentable with minimal visible impact.

The Results: A Durable and Efficient Water Line Replacement

The client’s water line issues were completely resolved with this trenchless replacement. The new poly water line now provides consistent water pressure and reliability for years to come, thanks to the advanced materials and professional installation techniques used by Valley Plumbing.

Long-Term Benefits:

• Durability: The new ¾-inch poly water line is resistant to corrosion, ensuring that the client will not experience leaks or water pressure issues in the foreseeable future.
• Minimal Disruption: The trenchless technology minimized the impact on the landscape, driveway, and property aesthetics. This approach also reduced the time needed to complete the project, allowing the team to finish within one day.
• Pressure Regulation: The new PRV ensures that the water pressure entering the home remains at a safe and consistent level, prolonging the lifespan of the plumbing system and reducing the risk of fixture damage.

Customer Review:

The client shared positive feedback about their experience with Valley Plumbing:

"Valley Plumbing representative was very thorough and specific in giving an estimate. It was a big job and they stayed for 10 hours to get it all done in one day. I was pleased with the way they did their work and will certainly keep them #1 on my call list."

Why Choose Valley Plumbing for Main Water Line Repairs?

Valley Plumbing’s combination of expertise, modern technology, and commitment to customer satisfaction made this challenging job a success. From providing detailed estimates to completing the work with precision and care, Valley Plumbing demonstrated why homeowners trust them for both large and small plumbing jobs across Utah.

If you’re experiencing water line issues or need expert plumbing services, Valley Plumbing is here to help. We offer comprehensive water line repair and replacement services using the latest trenchless technologies to minimize disruption and deliver long-lasting results. Contact Valley Plumbing today to schedule a consultation and ensure your home’s plumbing system is in top condition for years to come.

At Valley Plumbing, we pride ourselves on delivering fast, reliable, and high-quality plumbing services to customers across Utah. In this case study, we’ll highlight a recent water heater repair in Lehi, Utah, where one of our expert technicians addressed a customer’s water heater failure and restored their hot water supply. With a focus on professionalism and customer satisfaction, Valley Plumbing once again demonstrated why homeowners trust us for their plumbing needs.

This case study is designed to showcase our water heater repair expertise, highlight the efficiency of our services, and show the value of working with a trusted plumbing company like Valley Plumbing.

The Problem: Water Heater Failure in Lehi, Utah

The customer, a resident of Lehi, Utah, was experiencing a significant issue with their water heater, which had stopped producing hot water. Without a functioning water heater, daily tasks such as showering, laundry, and dishwashing had become difficult. The customer had attempted to restart the water heater on their own, but the problem persisted, leaving them without hot water and in need of professional assistance.

The water heater was diagnosed with a chamber sensor failure, which was preventing it from operating correctly. Without prompt attention, the water heater could continue malfunctioning, leading to further discomfort for the customer and possibly more extensive damage.



The Solution: Professional Water Heater Repair

When the customer contacted Valley Plumbing, we promptly scheduled a service call to assess the issue. Our technician arrived at the customer’s home equipped with the tools and expertise necessary to diagnose and repair the water heater.

Step 1: Diagnosis

Upon arrival, our technician met with the customer, who provided details about the previous water heater repairs and mentioned they had an expired membership that previously offered discounts on services. The technician explained the initial cost for diagnosing the issue, which was set at $256. After reviewing the water heater’s condition and conducting a thorough inspection, it was determined that the issue stemmed from a failed chamber sensor and problems with the gas control valve and burner assembly.

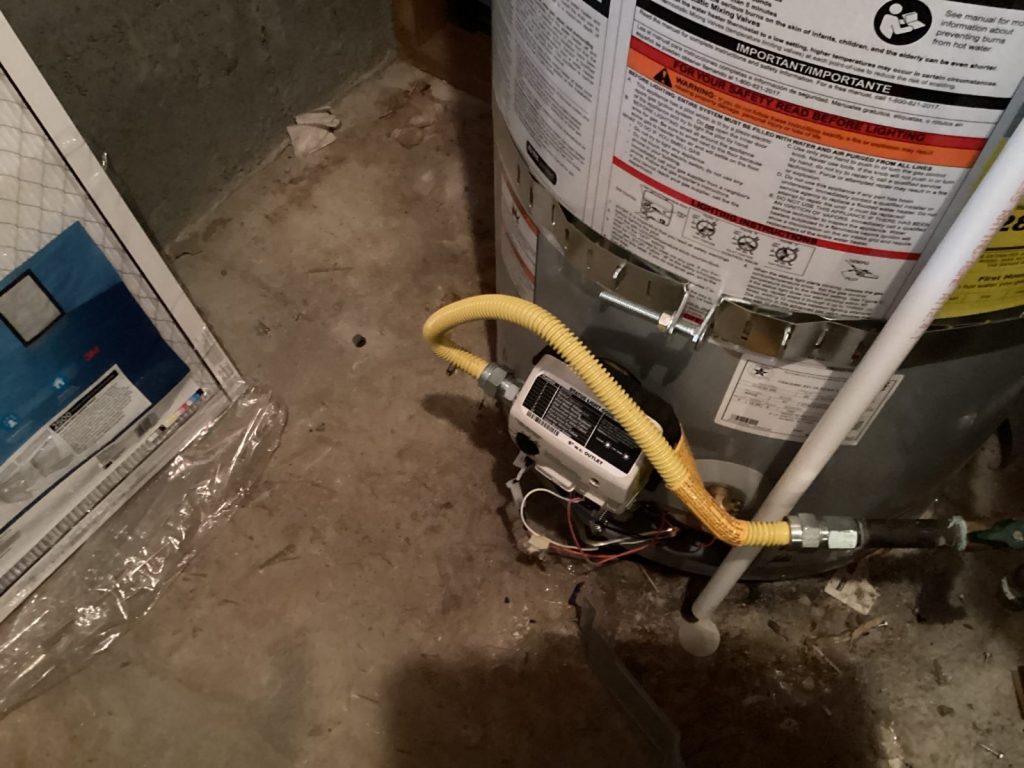

The customer’s water heater was in need of both a replacement gas control valve and a new burner assembly to restore functionality and ensure a reliable hot water supply.

Step 2: Providing a Transparent Estimate

Valley Plumbing values transparency and clear communication with customers. Our technician took the time to explain the scope of the repair and provided a detailed estimate for the necessary work. The total cost for replacing the gas control valve and burner assembly was quoted at $1,013.30. Although the customer had previously benefited from membership discounts, they decided not to renew the membership and proceeded with the repair at the quoted price.

Step 3: Completing the Repair

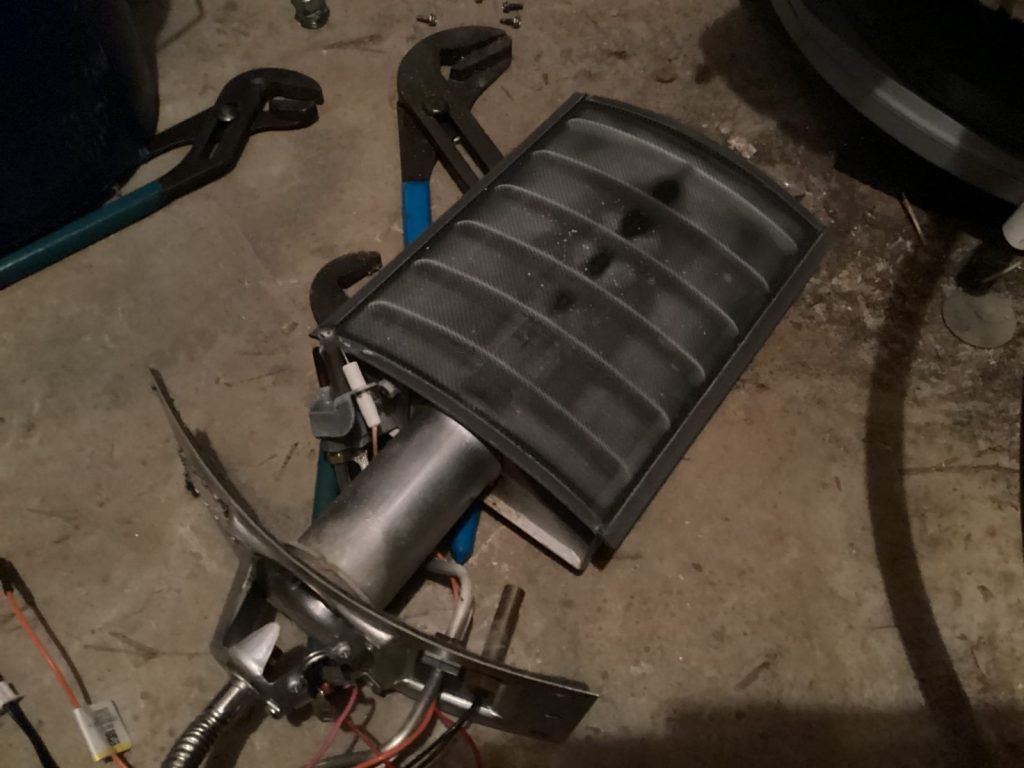

With the customer’s approval, our technician promptly began the repair process. The failed chamber sensor, along with the faulty gas control valve and burner assembly, were replaced with high-quality parts to restore the water heater’s functionality. The technician worked efficiently to complete the repair and ensured that the installation met the manufacturer’s specifications for optimal performance.

Once the repair was completed, a series of tests were run to confirm that the water heater was working correctly and that hot water was being supplied throughout the home. By the time the technician left, the customer’s water heater was back in operation, delivering reliable hot water for everyday use.

Step 4: Warranty and Payment Discussion

After the repair, our technician discussed warranty information with the customer. Valley Plumbing provides warranties on all repairs to ensure peace of mind for our customers. The customer appreciated the warranty coverage, knowing that any future issues related to the repair would be addressed promptly.

Additionally, the technician handled the payment process with professionalism and clarity, ensuring that the customer understood the charges and was satisfied with the overall service.

Customer Review: Positive Feedback on Valley Plumbing’s Service

The customer shared a glowing review following the repair:

"Valley Plumbing responded quickly and was able to fix my water heater issue promptly. Nice work!"

This positive feedback highlights our commitment to providing excellent customer service and addressing plumbing issues efficiently. By responding promptly and delivering high-quality repairs, Valley Plumbing exceeded the customer’s expectations.

The Results: Restored Hot Water and a Happy Customer

Thanks to Valley Plumbing’s quick response and expert repair services, the customer’s water heater was fully operational again, providing consistent hot water throughout the home. The repair not only resolved the immediate issue but also ensured the water heater would continue functioning efficiently, avoiding future breakdowns.

Key Outcomes:

• Restored Hot Water Supply: The customer’s water heater was repaired quickly, providing them with the hot water they needed for daily tasks such as bathing, cleaning, and laundry.
• High-Quality Parts: The replacement of the gas control valve and burner assembly with durable, high-quality components ensured the water heater would operate efficiently for years to come.
• Professional Service: Valley Plumbing maintained clear communication, transparency, and professionalism throughout the process, ensuring the customer was informed and satisfied with the service provided.
• Peace of Mind: The customer received a warranty on the repair, giving them confidence in the long-term reliability of their water heater and Valley Plumbing’s commitment to customer satisfaction.

Why Choose Valley Plumbing for Water Heater Repair?

At Valley Plumbing, we understand the importance of a functioning water heater for the comfort and convenience of your home. Whether it’s a sensor failure, a faulty burner assembly, or a broken gas valve, our experienced technicians are equipped to diagnose and resolve any water heater issue quickly and effectively.

Here’s why customers trust Valley Plumbing for water heater repairs:

• Prompt Service: We prioritize rapid response times to minimize the disruption caused by plumbing issues and ensure that your home’s essential systems are restored quickly.
• Experienced Technicians: Our technicians are highly trained and knowledgeable about all types of water heaters, from traditional models to modern tankless systems.
• Transparent Pricing: We provide clear, upfront pricing for all services, ensuring that customers know what to expect before any work begins.
• Quality Parts and Repairs: We use only high-quality parts to ensure long-lasting repairs and efficient system performance.
• Customer Satisfaction: Valley Plumbing is committed to delivering exceptional customer service, and our positive reviews reflect our dedication to meeting and exceeding customer expectations.

Conclusion: Professional Water Heater Repair in Lehi, Utah

This water heater repair in Lehi, Utah is another example of how Valley Plumbing delivers reliable, efficient, and high-quality plumbing services. Whether your water heater is experiencing sensor failure, valve issues, or other malfunctions, our team is ready to provide prompt, professional repairs to restore your home’s hot water supply.

If you’re facing water heater issues or other plumbing concerns, contact Valley Plumbing today to schedule a consultation. We’re here to keep your home comfortable and running smoothly with our expert plumbing services.
